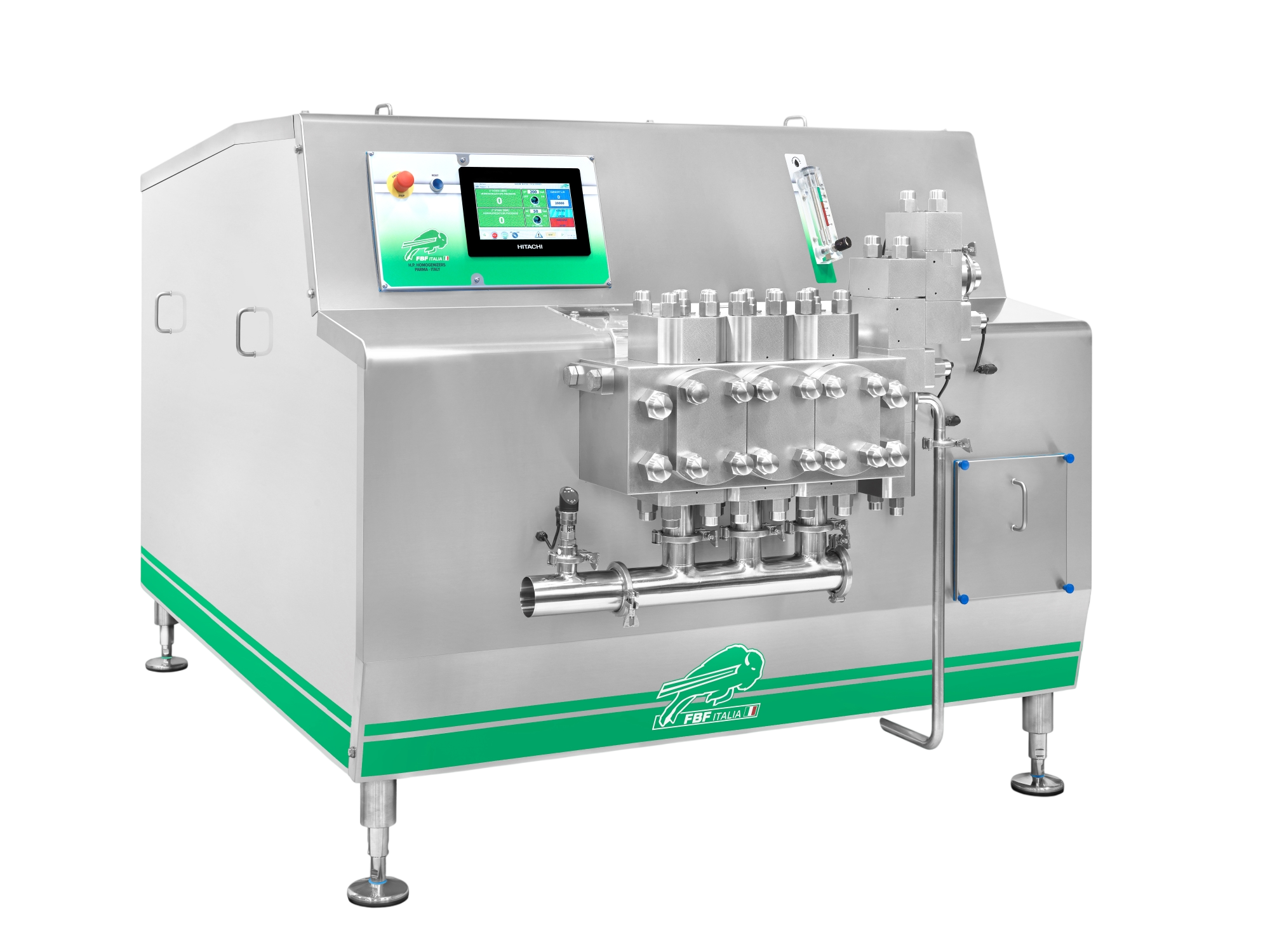

Industrial Homogenizers

FBF

9160

Weight kg 5.150 - 5.500
Dimensions cm 190 x 260 x 180
Power kw 160
Pistons plungers Nr. 3
Water consumption l/h 150 - 180
Operational pressure (bar) Flow rate from (l/h) Flow rate to (l/h)
100 26.000 40.000
130 26.000 39.000
150 25.000 33.000
180 21.000 27.000
200 19.000 25.000
230 17.000 22.000
250 16.000 20.000
300 13.000 16.000
  • Compression Head guaranteed 5 YEARS against breakage, made from a single block of special stainless steel, forged and ultrasonically inspected
  • Valve Units housed in individual stainless steel AISI 316 blocks, each individually inspectable
  • Plunger pistons with rear cooling chamber, optimal alignment with double guide, special coating (standard) over their entire length in “Diamond Like Carbon”
  • Interchangeable Valve Seats and Semi-spherical Valves designed to handle a vast range of products
  • Highly efficient homogenizing valves thanks to a design aimed at maximum stability/alignment of the mobile element (Impact Head) and the use of a hydraulic thrust group to prevent any potential vibration onset during operation
  • Safety valve in sanitary design, spring-loaded operation with interchangeable shutter and seat.

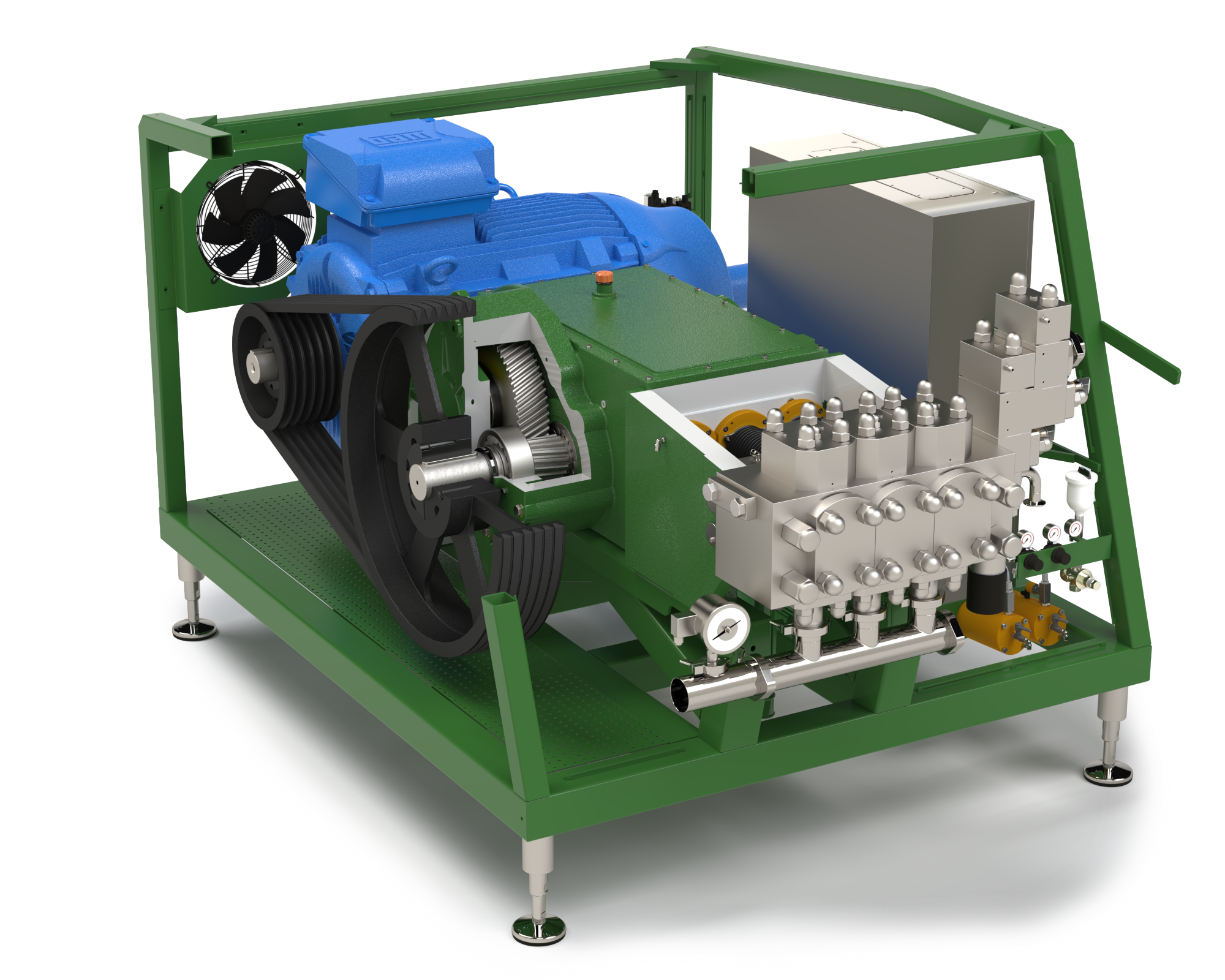

  • Pump Body made of high-quality cast iron with high resistance and thick walls, designed to withstand high loads and cancel operating vibrations
  • Crankshaft made from special forged steel, “multi-steep” heat treatments, super finishing on the necks, full nitriding with ultrasonic inspection. Supported by high-performance roller bearings (bushings are used exclusively on the necks) – 5 units for machines with 3 plunger pistons, 7 units for machines with 5 plunger pistons.
  • Motion transmission with double reduction stage: trapezoidal belts/pulleys with semi-automatic tensioning plus a pair of helical gears inside the pump body (slow gear directly keyed onto the Crankshaft)
  • Forced lubrication with oil level sight glass on the machine front, irregular pressure alarm, intense impurity filtration. Moreover, for optimal balance/thermal dissipation, all parts dedicated to motion transmission are oil immersed
  • Alternating current motor from a leading brand and standard 4 poles
  • Frame made with thick section square steel painted with powder; this solid structure is fully clad in stainless steel with a satin finish.
  • Set of first-use spare parts (full set of Seals, set of Valve group Springs, Safety Valve set)
  • Tools for regular maintenance
  • Pump Body lubrication oil
  • User-Manual (2 copies + CD ROM)
  • Double-stage homogenization servo-assisted type (oleopneumatic group)
  • Digital pressure transducers and analogue pressure gauges with 4-20 mA output signals
  • Fixed Flow Rate (internal machine control panel)
  • Variable Flow Rate (external stainless steel control panel)
  • Aseptic version through the use of sterile condensation barriers produced by a specific integrated system
  • Inlet/Outlet Product Compensation Tanks, also specific for aseptic productions
  • Product input pressure gauge with alarm contact, with timed management of deactivation-activation of homogenizing valves
  • Semi-automatic/automatic control of homogenization pressures.

*Non-binding and subject to change without notice technical specifications.

Download

Valvola omogeneizzante utilizzata per regolare e facilitare il processo di omogeneizzazione dei liquidi.
ACCESSORIES

Remote Homogenizing
Valve

Do you have a single-stage homogenizer and want to convert it into a two-stage homogenizer easily, quickly and inexpensively?

Thanks to the Remote Homogenizing Valve (VOD), which consists of a complete homogenizing chamber that can be operated independently of the existing homogenizer, it is possible to transform the single-stage homogenizer into a two-stage homogenizer.

This is made possible by a Remote Homogenizing Valve equipped with a single pressure gauge for reading the homogenizing pressure.
